Korea's First Manned All-Electric GA Aircraft Flight – Full Technical Research
1. Research Overview</h2>
This research marked a historic achievement: Korea’s first successful flight of a manned, general aviation (GA)-class aircraft powered entirely by an in-house developed high-voltage battery system. The project encompassed the complete system development lifecycle—from cell characterization and thermal simulation to integration, environmental qualification, and real-world flight demonstration—serving as a foundational reference for Korea’s future airworthiness certification framework for electric propulsion.
- Duration: Apr 2020 – Dec 2023
- Funding: Approx. 2.1M USD
- Lead Organization: Korea Aerospace Research Institute (KARI)
- Participating Organizations: AMOTECT, JNS, KETI, Vessel Aerospace, KATRA, Hanwha Aerospace, VSPACE
2. Research Motivation
The global push for carbon-neutral aviation has prompted major initiatives around electric propulsion. While global leaders like Pipistrel and Bye Aerospace demonstrated early success with electric training aircraft, Korea lacked a complete demonstration platform capable of supporting both regulatory development and real-world flight performance validation. This research aimed to close that gap with a domestically built, certifiable electric GA platform.
3. Technical Objectives
- Develop a 25.8 kWh high-voltage battery system based on cylindrical Li-ion cells with full aviation-grade safety features.
- Implement dual-module architecture optimized for CG balancing and thermal dissipation.
- Design and fabricate a robust enclosure compliant with vibration, drop, ingress, and pressure standards.
- Establish fault-tolerant CAN-based BMS telemetry integrated with propulsion and flight control systems.
- Validate system performance under iron-bird bench testing, environmental qualification, and manned flight.
4. My Contributions
- Defined pack architecture based on mission and CG constraints.
- Selected and qualified all 1,404 cylindrical cells.
- Designed enclosure and mechanical mounts validated by FEA.
- Developed STM32-based BMS hardware and bare-metal firmware.
- Conducted environmental testing, iron-bird integration, and final installation.
- Coordinated with propulsion teams and national research institutions (KARI, KETI) to align electrical and thermal specs across systems.
5. Engineering Approach
5.1 Cell Characterization and Pre-Selection
Each of the 1,500+ cells was tested for capacity, internal resistance, and thermal behavior. Statistical filtering ensured a variance margin within ±2.1% in capacity and <5 mΩ in DCIR. Thermal tests ensured no hotspots under 3C load.
5.2 System Architecture and Modeling
Battery configuration was set as 156S9P (577 V, 25.8 kWh) split into front (156S6P) and rear (156S3P) packs. Thermal and structural performance was validated through CFD and FEA simulations. EMI and mechanical robustness were also considered.

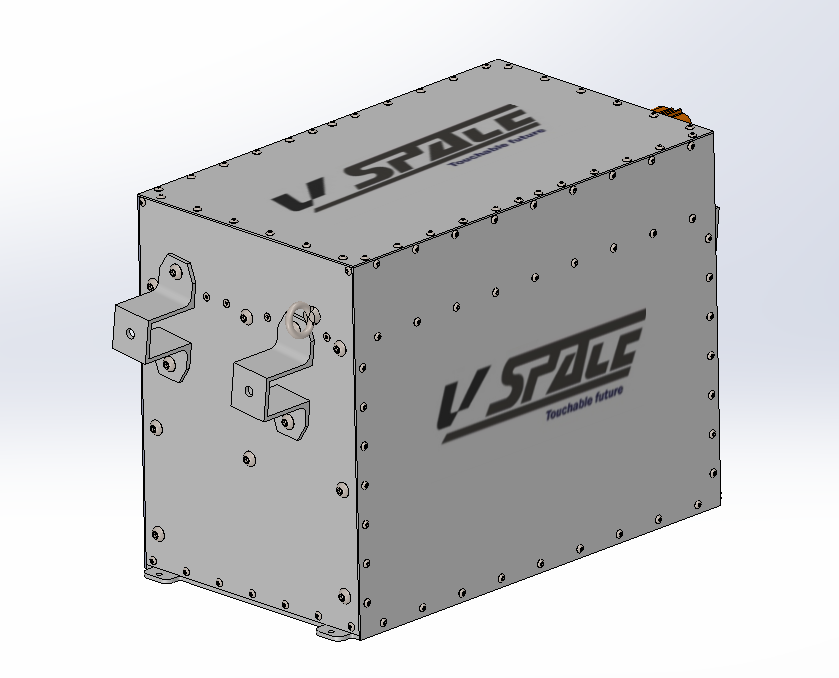

Figure 1. Front battery CAD model

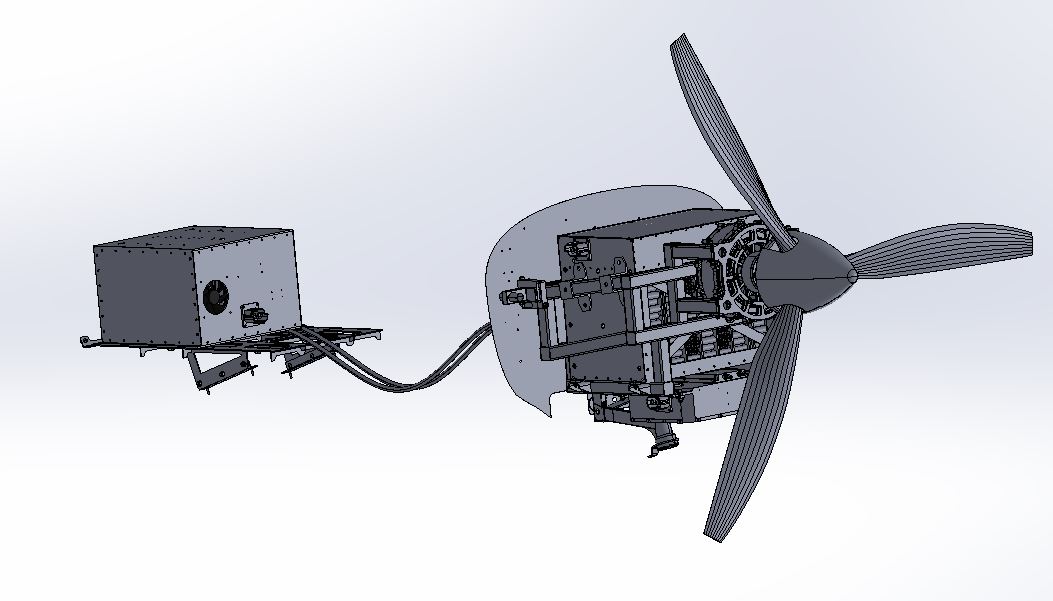

Figure 2. Propulsion system 3D model
5.3 Pack Fabrication and Mechanical Integration
Each module was housed in an IP67-rated aluminum case with shock isolation. Copper busbars, thermistors, HVIL, and mounting rails were fabricated in-house. Sealing used EPDM gaskets and RTV.

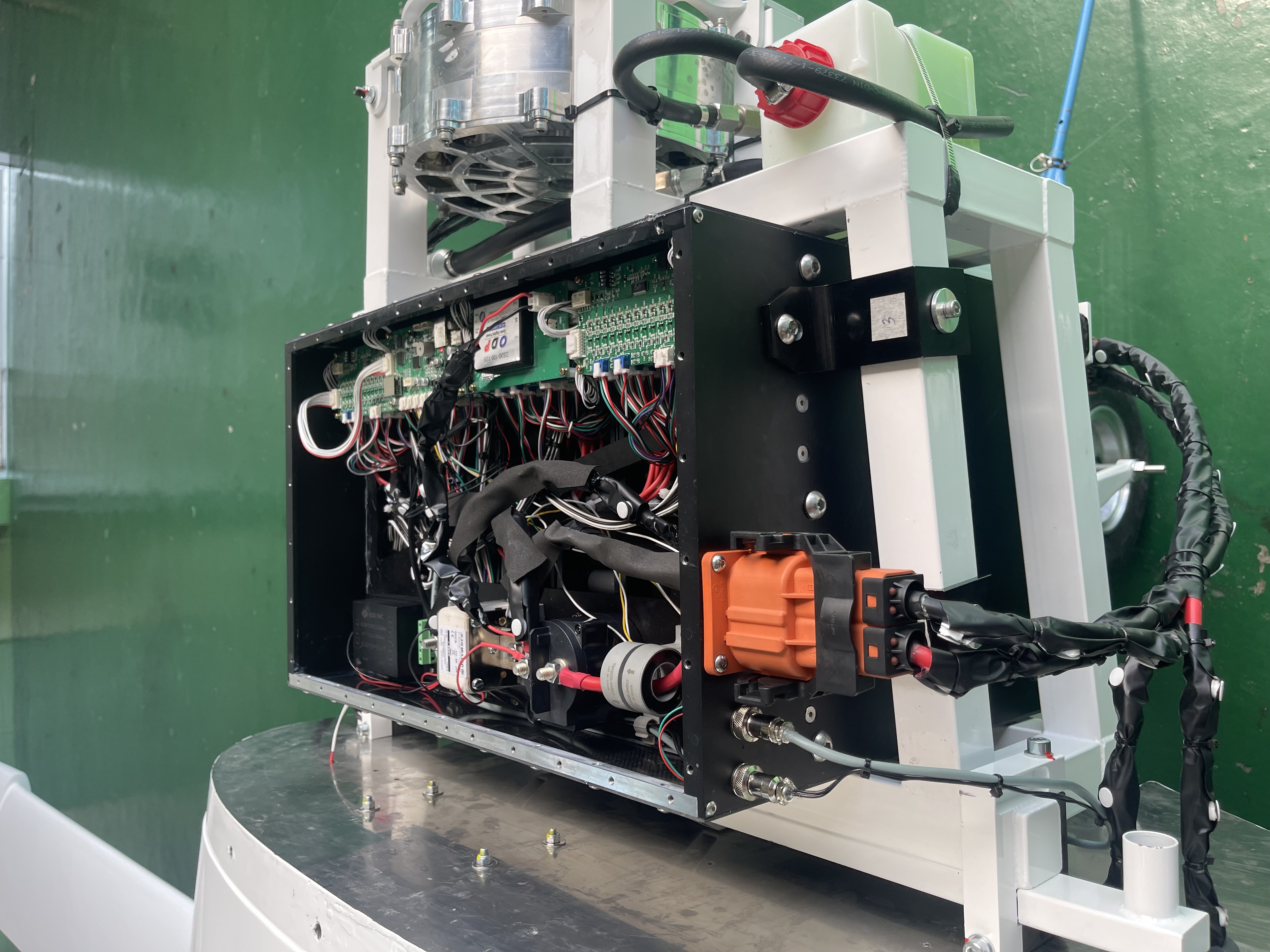

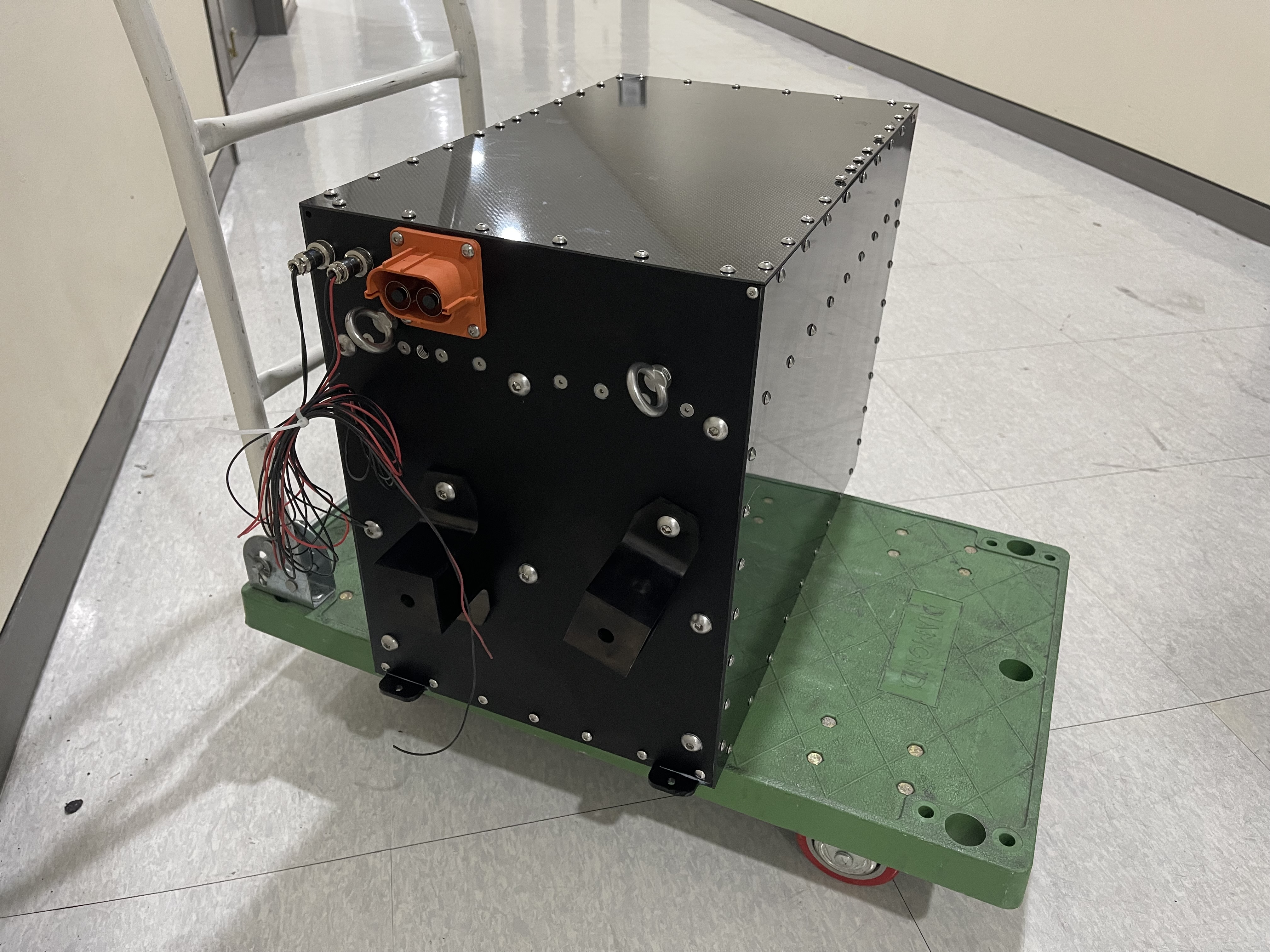

Figure 3. Fabricated battery module

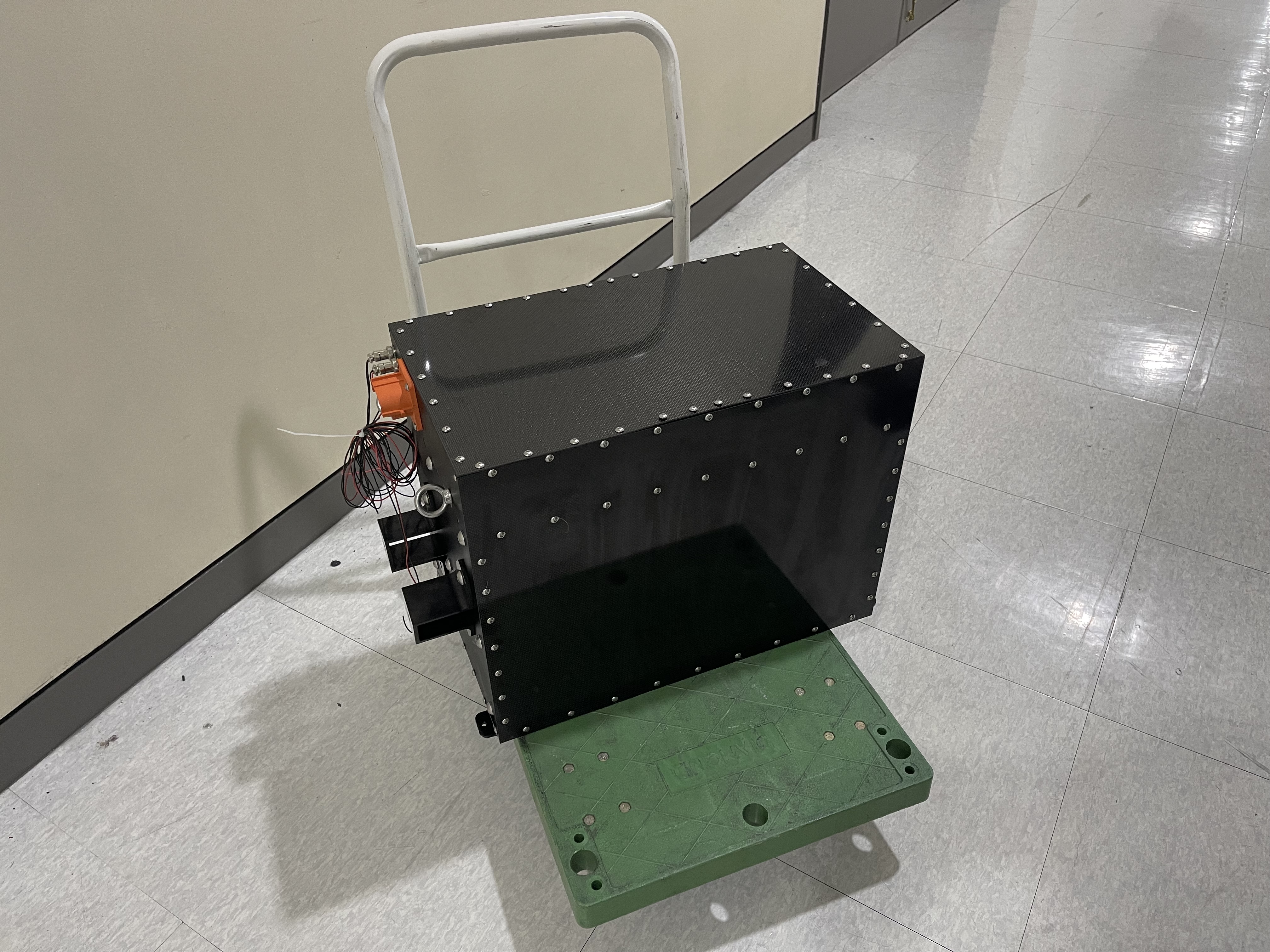

Figure 4. Side profile of battery enclosure
5.4 Embedded BMS Development
STM32based BMS used passive balancing, redundant contactor logic, EEPROM logging, and custom CAN protocol. All code was bare-metal C, using interrupts and timers—no RTOS was used.
5.5 Iron-Bird Testing
The propulsion loop (battery-inverter-motor) was tested on the bench with throttle sweeps, regenerative braking, and fault injection scenarios.

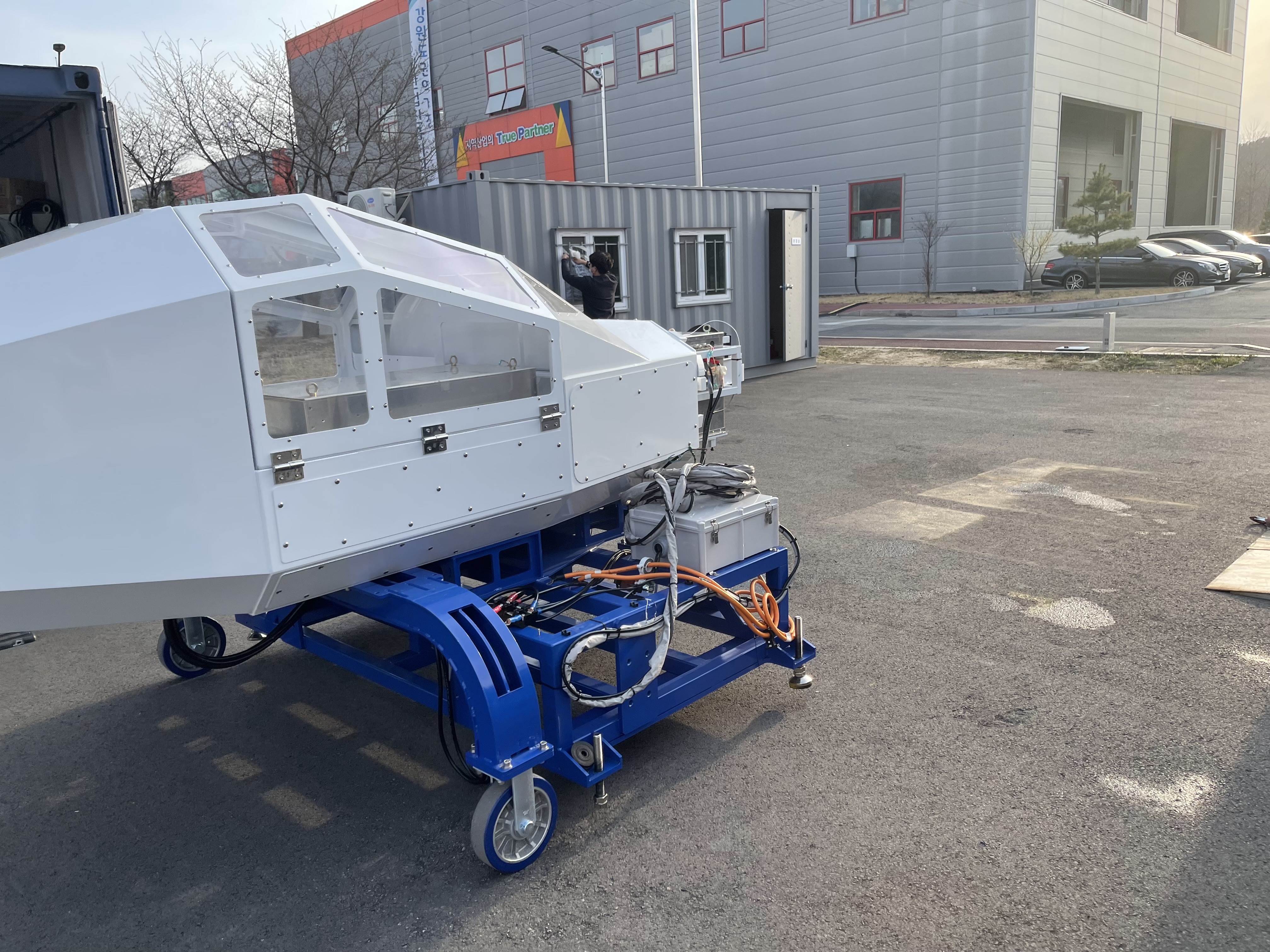

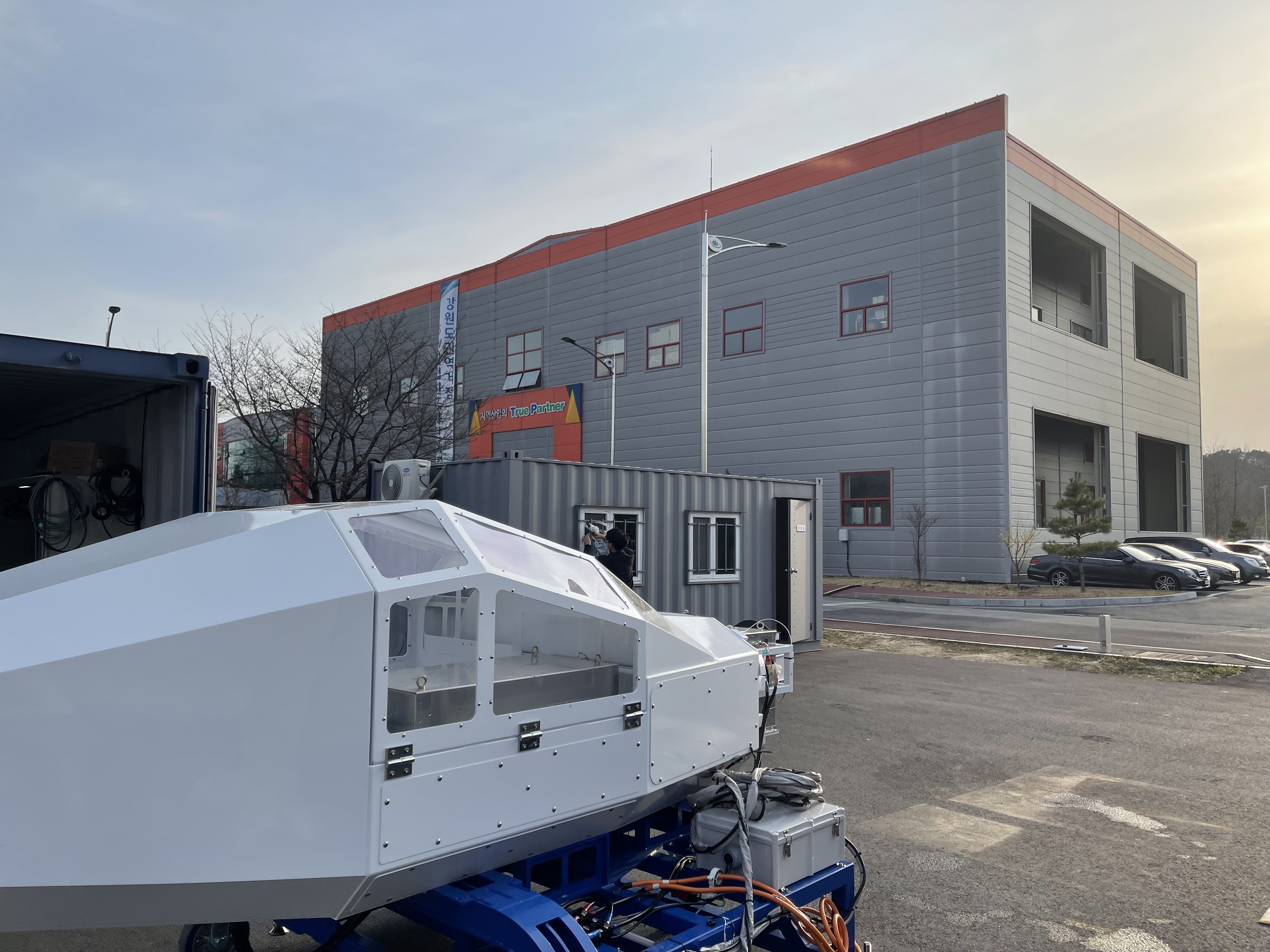

Figure 5. Iron-bird test setup
Figure 6. Bench test with full loop
5.6 Environmental Qualification
DO-311-inspired tests were conducted: vibration (up to 8 g), thermal cycling (-10 °C to +50 °C), IP67 submersion, 1 m drop, and altitude simulation at 500 ft.

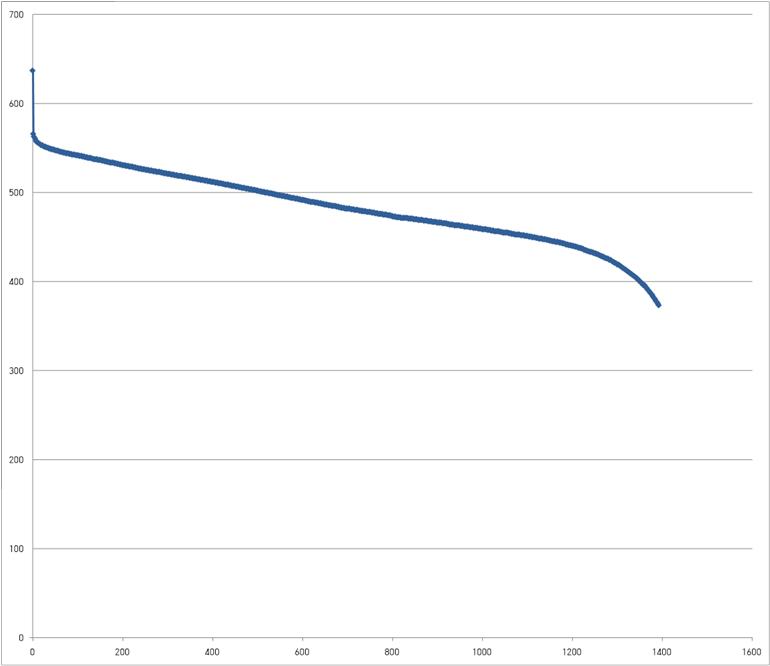

Figure 7. Battery discharge thermal test
5.7 Airframe Integration and Taxi Test
Wiring, CAN routing, fuses, and kill switches were integrated with the KLA-100X airframe. Ground tests included throttle response, live telemetry, and emergency shutdown.

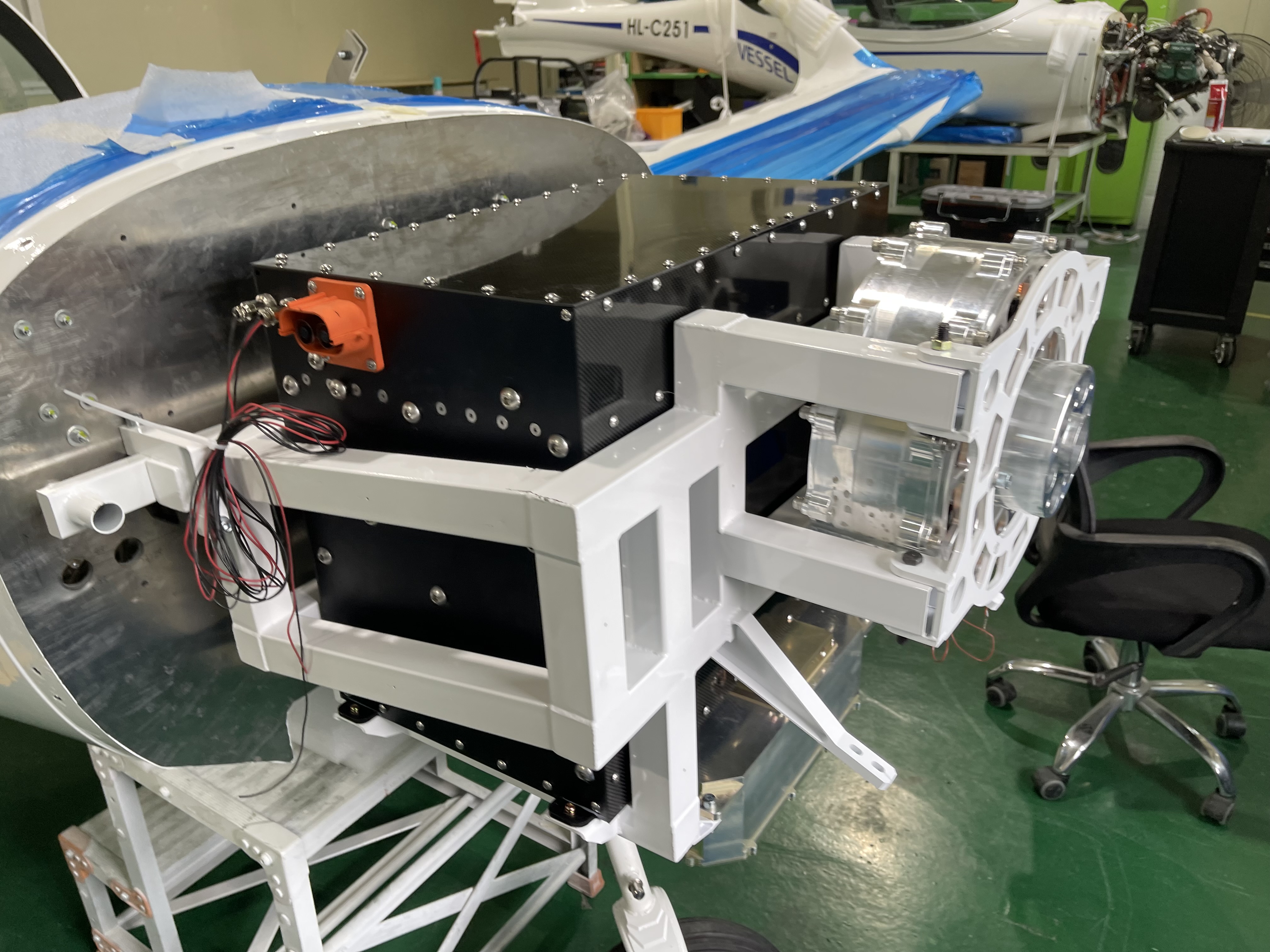

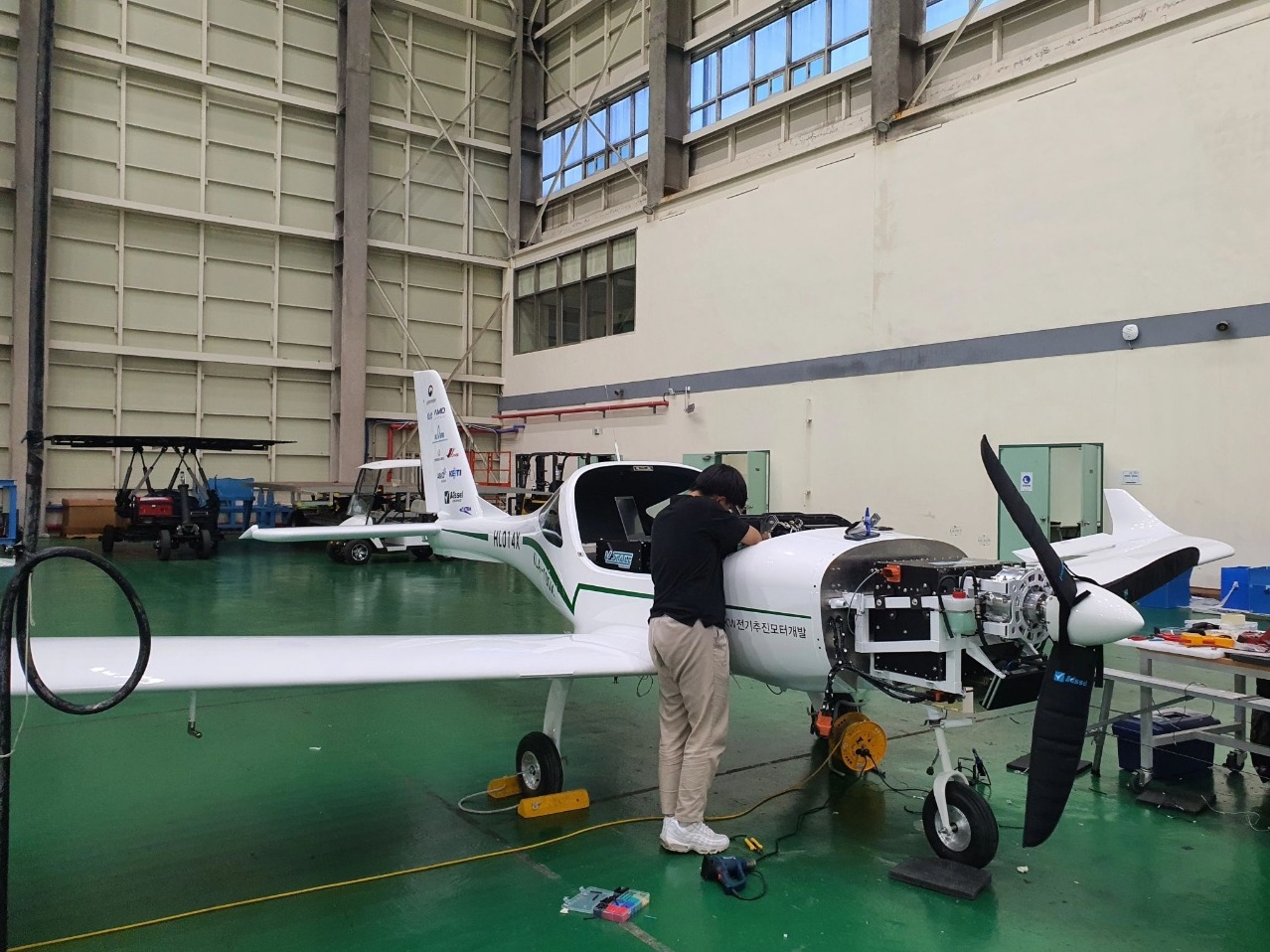

Figure 8. Battery module install
Figure 9. Battery wiring check

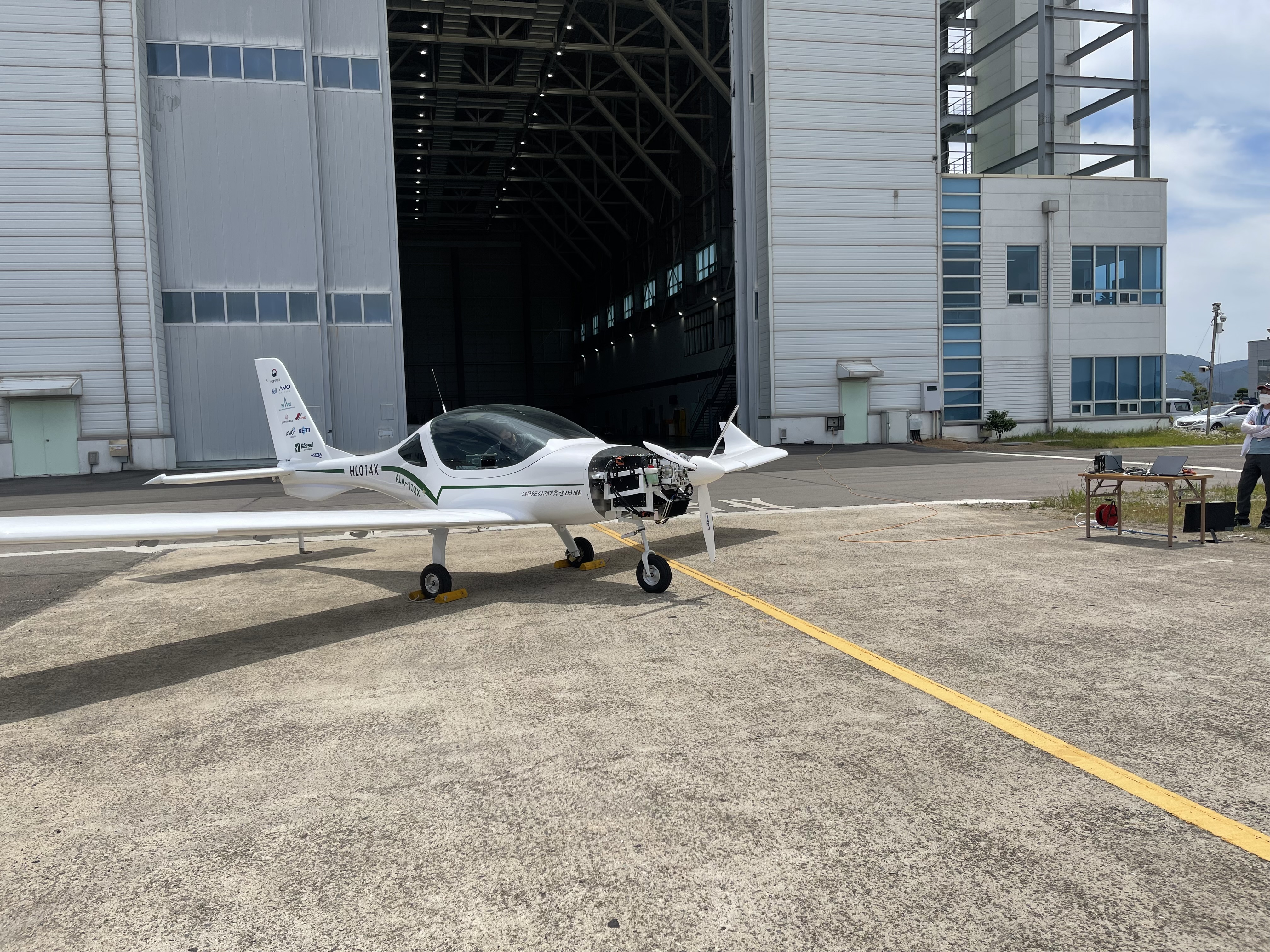

Figure 10. Ground inspection
5.8 Manned Flight Test
The aircraft successfully performed Korea’s first electric-powered manned flight. BMS balancing remained within 15 mV. Cruise load was ~32 kW. Max discharge was 230 A.

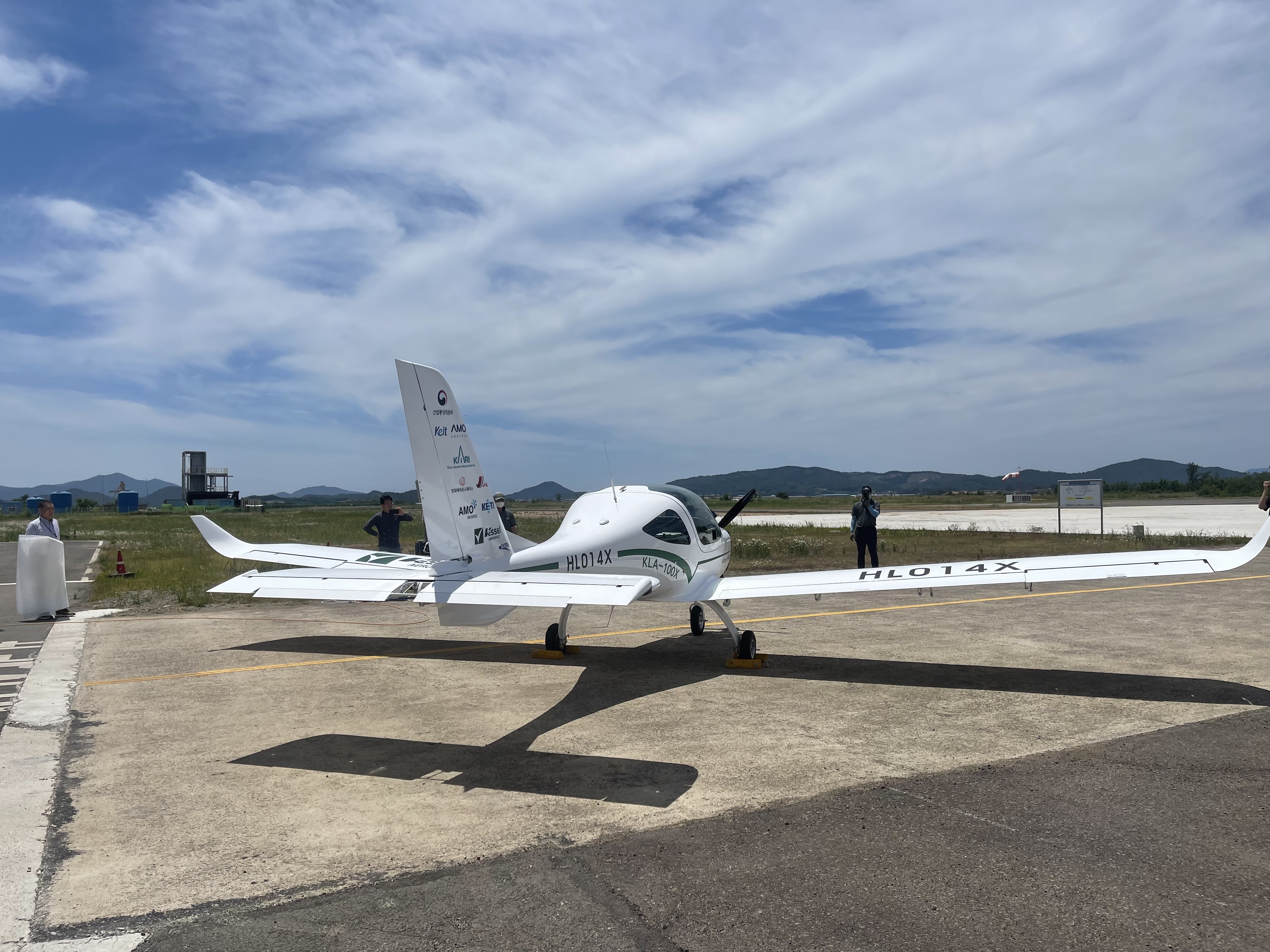

Figure 11. Final check before flight
Figure 12. Actual flight
Figure 13. Commemorative photo
6. Applied Product
This battery system was installed in the KLA-100X platform...
7. Flight Logs
8. Journal Publication
Modification and Development of Manned Electric Propulsion Lightweight Airplane
Journal of Aerospace System Engineering, 2023, Vol. 13(1)
